Unity WebGL 屏幕自适应

字数统计: 655阅读时长: 3 min
2019/11/22 Share

Unity 构建的 WebGL 项目,是无法自动适应屏幕的、无法全屏的,我们需要修改 index.htmlstyle.css 文件,使其支持屏幕自适应的功能。

index.html

修改 index.html 文件,我们为 body 添加 Resize 函数,同时设置 gameContainerwidthheight 属性。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
<!DOCTYPE html>
<html lang="en-us">
<head>
<meta charset="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>Unity WebGL Player | Billboard</title>
<link rel="shortcut icon" href="TemplateData/favicon.ico">
<link rel="stylesheet" href="TemplateData/style.css">
<script src="TemplateData/UnityProgress.js"></script>
<script src="Build/UnityLoader.js"></script>
<script>
var gameInstance = UnityLoader.instantiate("gameContainer", "Build/Billboard.json", {onProgress: UnityProgress});
</script>
</head>
<!-- 绑定 onResize 事件。 -->
<body onResize="Resize()">
<div class="webgl-content">
<!-- 设置 gameContainer 的 width 和 height 为 100% 。 -->
<div id="gameContainer" style="width: 100%; height: 100%"></div>
<div class="footer">
<div class="webgl-logo"></div>
<div class="fullscreen" onclick="gameInstance.SetFullscreen(1)"></div>
<div class="title">Billboard</div>
</div>
</div>
<!-- 添加 Resize 函数,实现画面自动适应窗口大小。 -->
<script type="text/javascript">
function Resize() {
document.getElementById("gameContainer").style.width = window.innerWidth + "px";
document.getElementById("gameContainer").style.height = window.innerHeight + "px";
document.getElementById("#canvas").style.width = window.innerWidth + "px";
document.getElementById("#canvas").style.height = window.innerHeight + "px";
}
</script>
</body>
</html>

style.css

修改 TemplateDate/style.css 文件,设置以下的样式。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
::-webkit-scrollbar{display:none;}

.webgl-content * {border: 0; margin: 0; padding: 0}
.webgl-content {position: absolute; top: 50%; left: 50%; width: 100%; height: 100%; -webkit-transform: translate(-50%, -50%); transform: translate(-50%, -50%);}

.webgl-content .logo, .progress {position: absolute; left: 50%; top: 50%; -webkit-transform: translate(-50%, -50%); transform: translate(-50%, -50%);}
.webgl-content .logo {background: url('progressLogo.Light.png') no-repeat center / contain; width: 154px; height: 130px;}
.webgl-content .progress {height: 18px; width: 141px; margin-top: 90px;}
.webgl-content .progress .empty {background: url('progressEmpty.Light.png') no-repeat right / cover; float: right; width: 100%; height: 100%; display: inline-block;}
.webgl-content .progress .full {background: url('progressFull.Light.png') no-repeat left / cover; float: left; width: 0%; height: 100%; display: inline-block;}

.webgl-content .logo.Dark {background-image: url('progressLogo.Dark.png');}
.webgl-content .progress.Dark .empty {background-image: url('progressEmpty.Dark.png');}
.webgl-content .progress.Dark .full {background-image: url('progressFull.Dark.png');}

.webgl-content .footer {margin-top: -45px; margin-left: 5px; margin-right: 5px; z-index: 1; position: relative; height: 38px; line-height: 38px; font-family: Helvetica, Verdana, Arial, sans-serif; font-size: 18px;}
.webgl-content .footer .webgl-logo, .title, .fullscreen {height: 100%; display: inline-block; background: transparent center no-repeat;}
.webgl-content .footer .webgl-logo {background-image: url('webgl-logo.png'); width: 204px; float: left;}
.webgl-content .footer .title {margin-right: 10px; float: right;}
.webgl-content .footer .fullscreen {background-image: url('fullscreen.png'); width: 38px; float: right;}

效果演示

  • 修改之前的界面演示

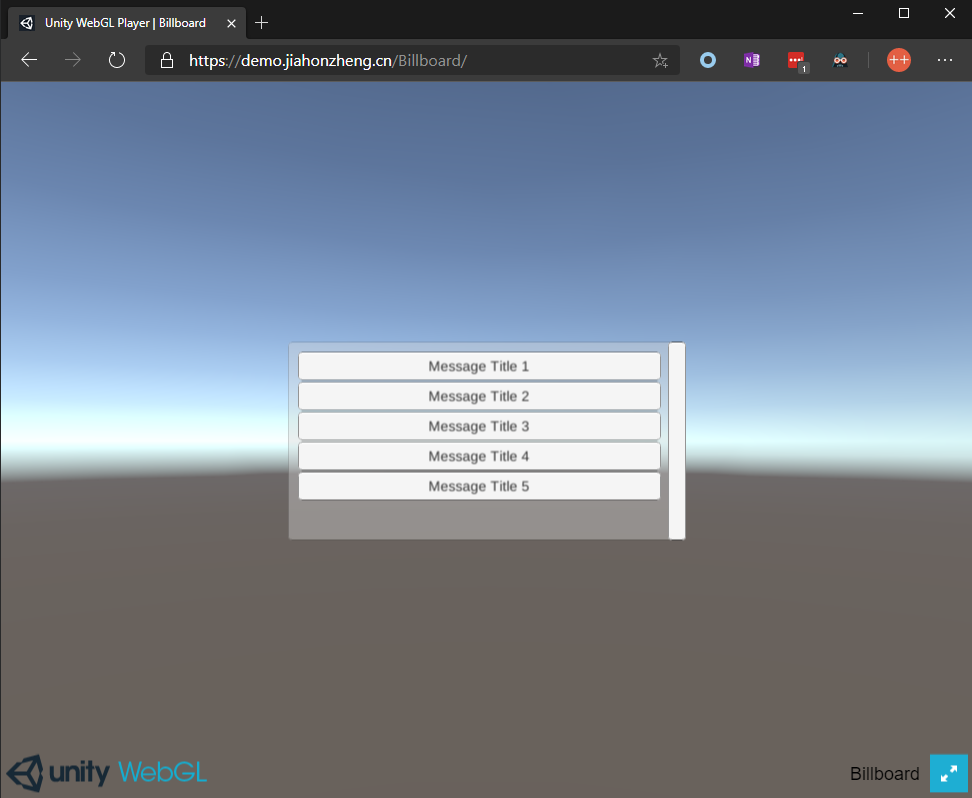

  • 修改之后的界面演示

参考资料
